Official SKS Sight-in Guidelines for Soviet and Yugoslavian Armourers

[u/Historical-Hat2629]

I believe it has been discussed many times on CGN forum but I've found these documents really useful, especially with the surge of SKS purchases and new SKS owners joining the gang there might be people asking what to do with their SKS carbines that shoot 10 feet high and 20 feet to the left (lol)

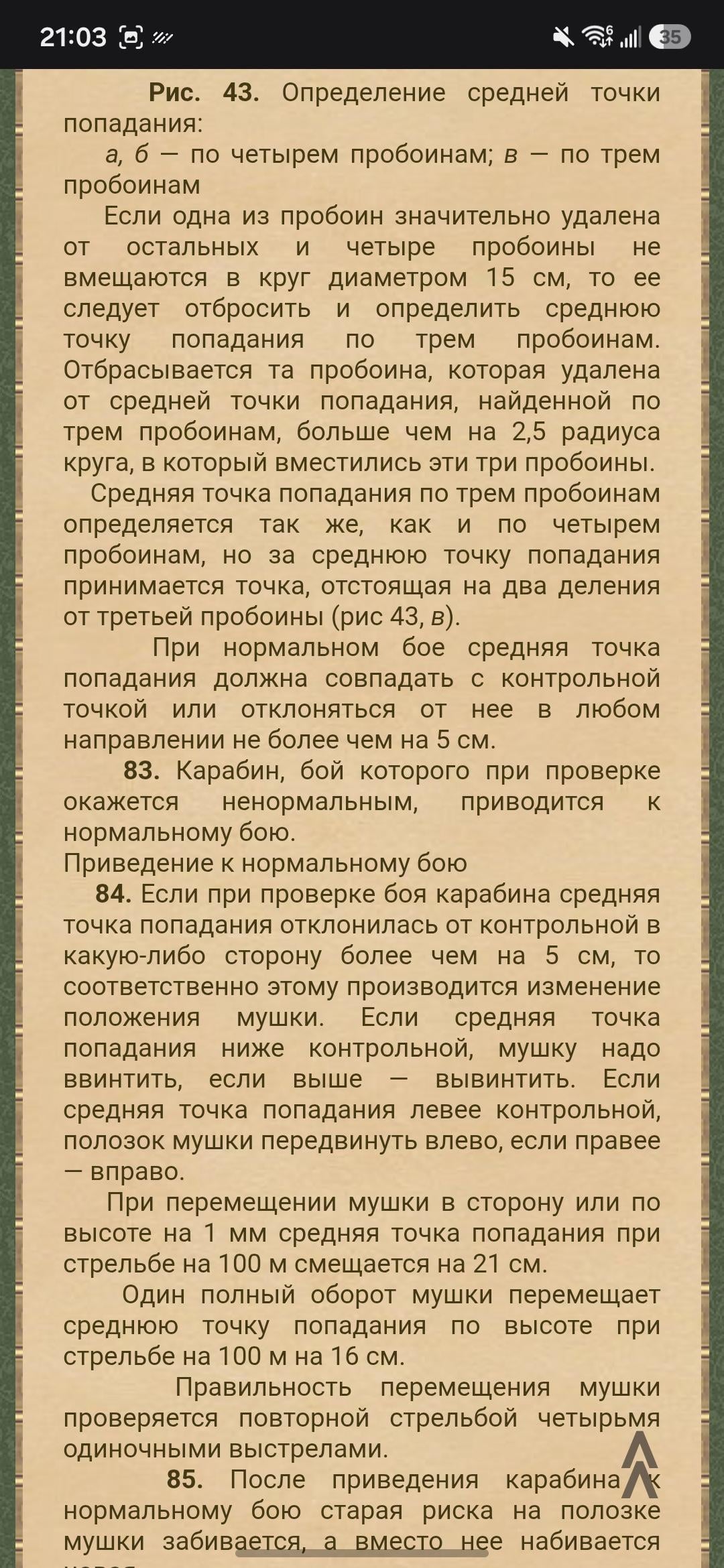

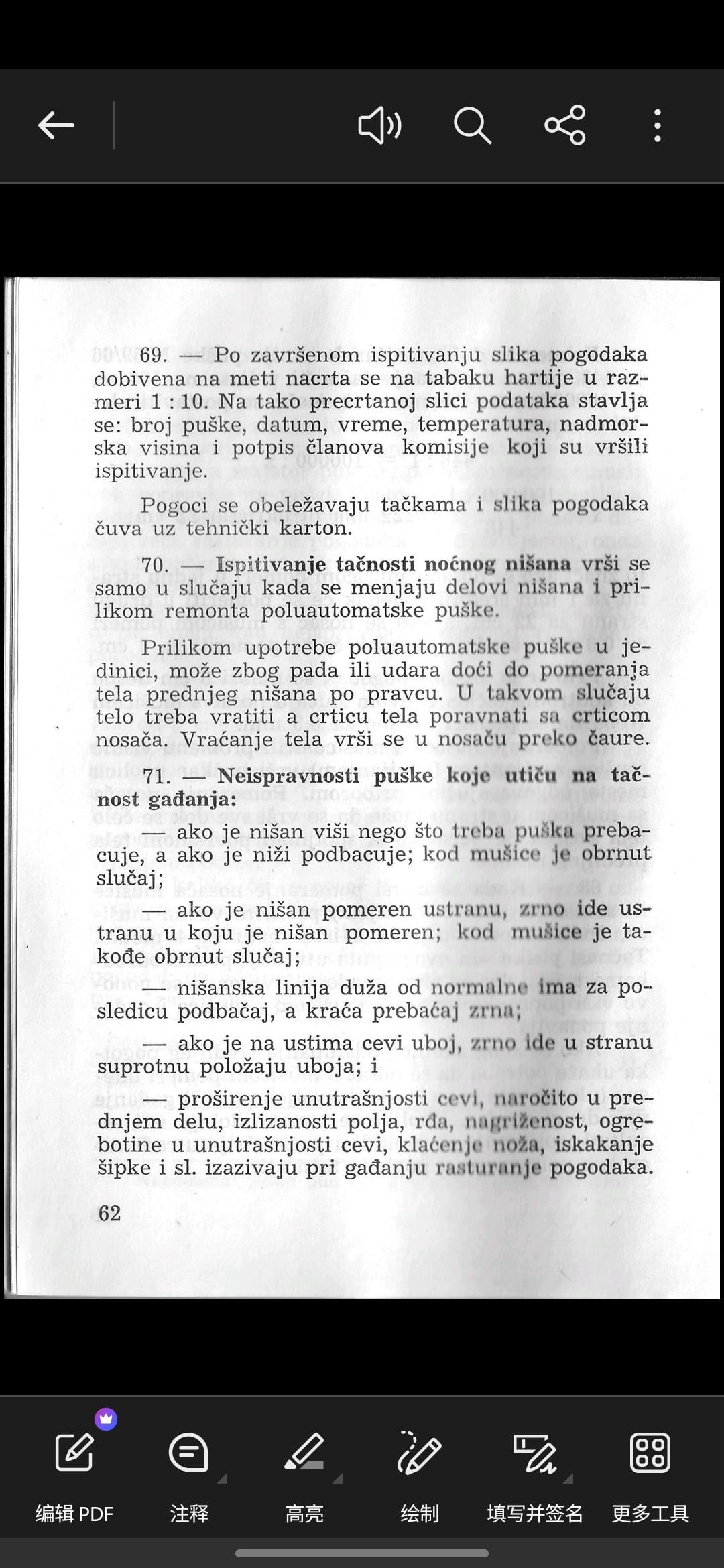

These are the official sight-in guidelines for Soviet and Yugoslavian armourers. Too bad I haven't been able to find the Chinese version but I'm pretty sure they are almost identical to each other.

Both guidelines require that you use the BATTLE SIGHT (III or 3), then shoot 4 rounds from a rested position at 100m, and aim at the CENTER of the BOTTOM EDGE of a black target.

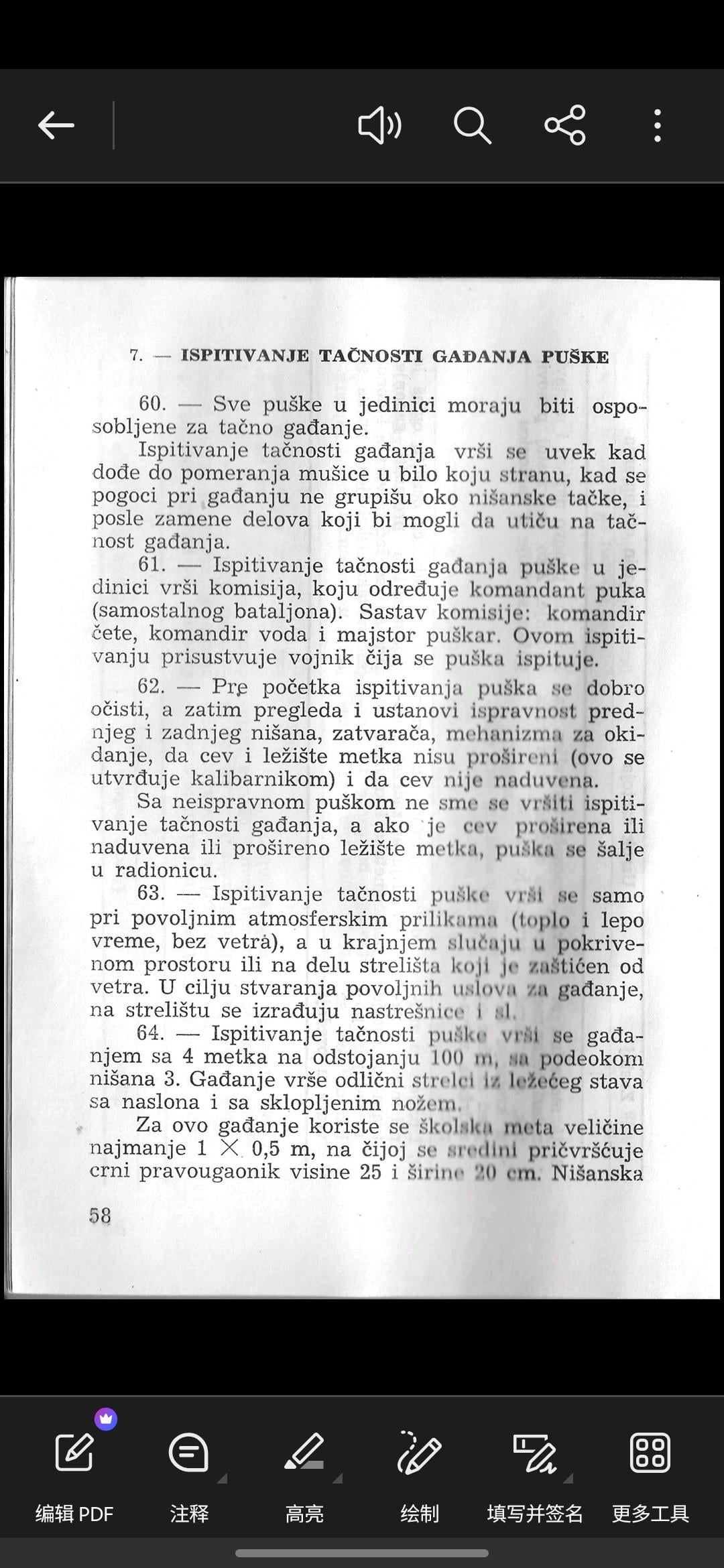

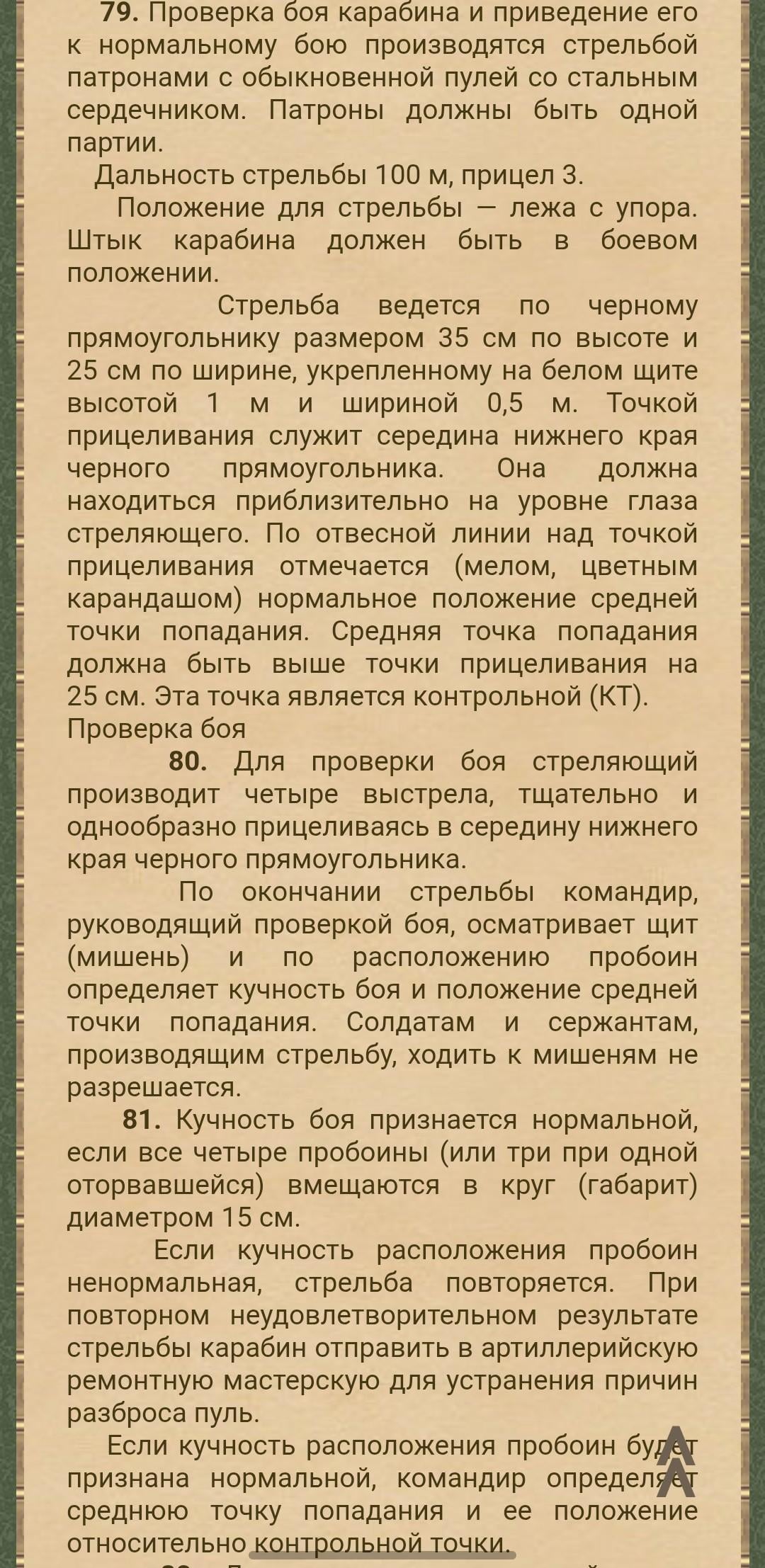

The Soviet manual requires a black rectangular target (35cm x 25cm) attached to a white backboard (100cm x 50cm), while the Yugo instruction only requires a 25cm x 20cm black rectangular target attached to a white backboard of the same size.

After shooting 4 rounds, you gotta check your grouping. At least 3 rounds should fit within a 15cm circle. This makes sure your SKS has the Minute-of-Capitalist accuracy (5 MOA at 100m) to begin with.

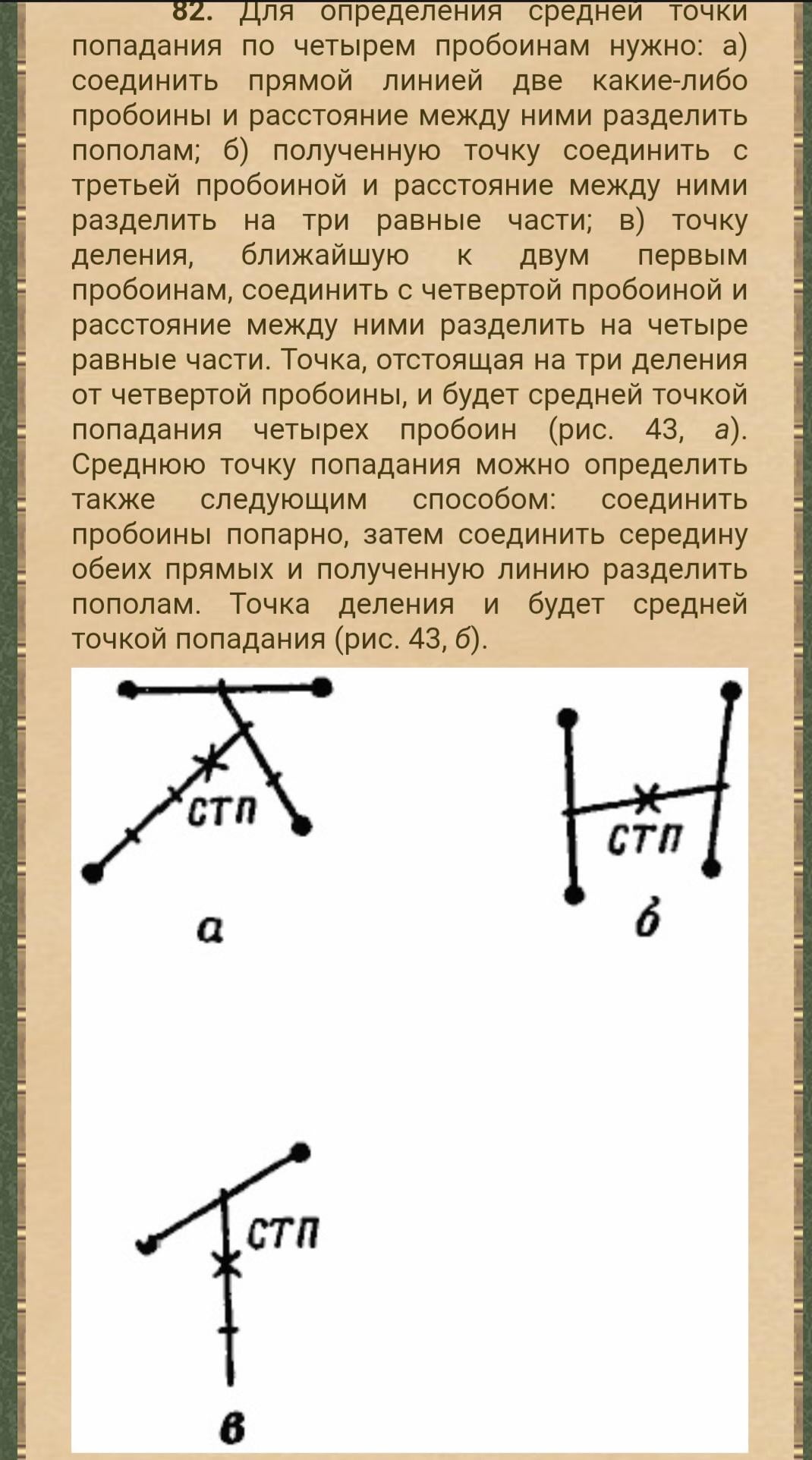

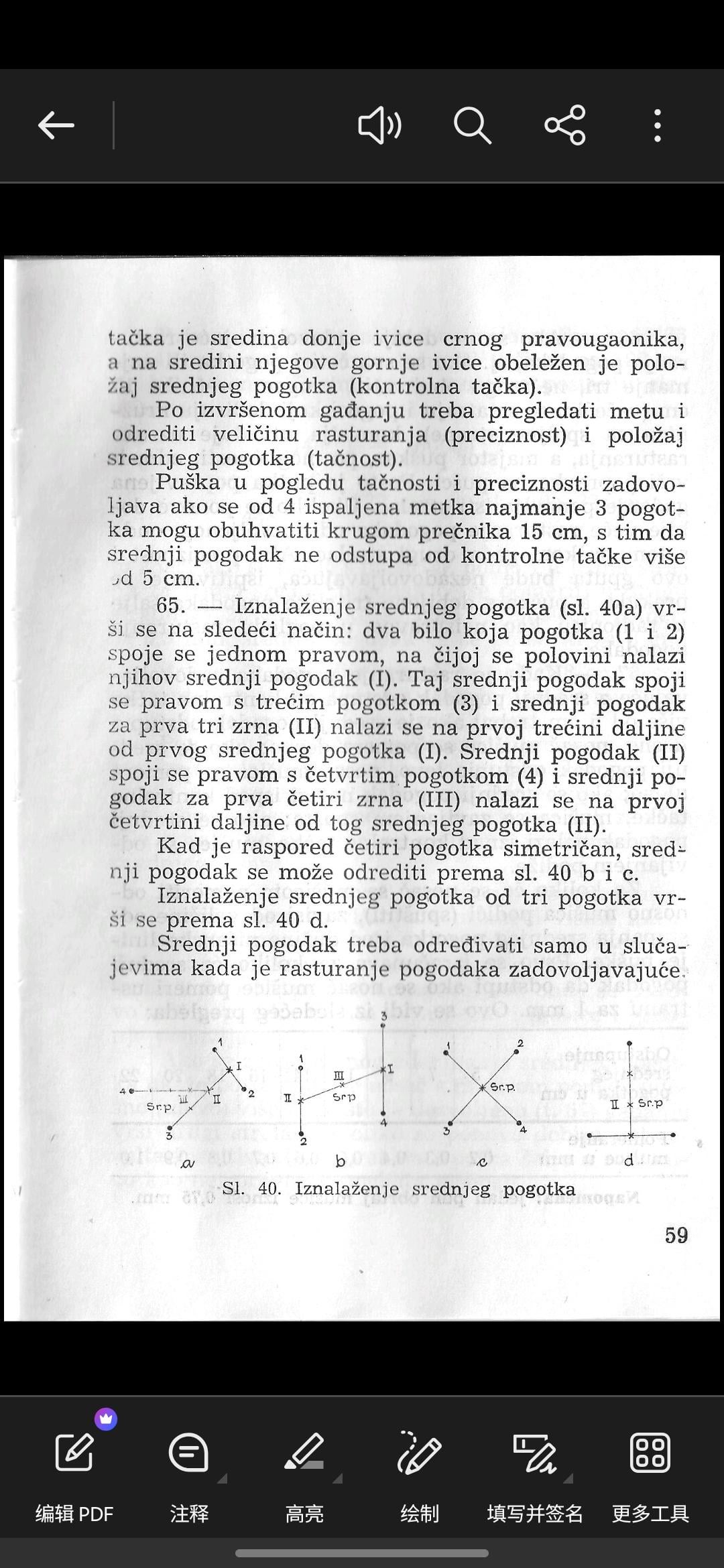

Then, locate the center of your 4 hits by pairing 4 random bullet holes with 2 straight lines, connecting the 1/2 centres of the 2 lines with a 3rd straight line. The center point of the 3rd line is now the center of your hits.

Now, compare the centre of your actual hits to the theoretical point of impact, which should be exactly 25cm right above the point of aim. If the deviation of your actual impact vs the theoretical point of impact is less than 5cm, DO NOTHING. You're all set.

If the deviation is greater than 5cm, you will need to adjust your front sight post. Say if it shoots to the left, then you push the sight post to the LEFT. If it shoots high, you turn the sight post UPWARD.

For Russian and Chinese SKS:

Each full turn of the sight post changes the elevation by 16cm at 100m. Moving the sight post horizontally by 1mm changes the windage by 21cm at 100m.

For Yugoslavian M59/66:

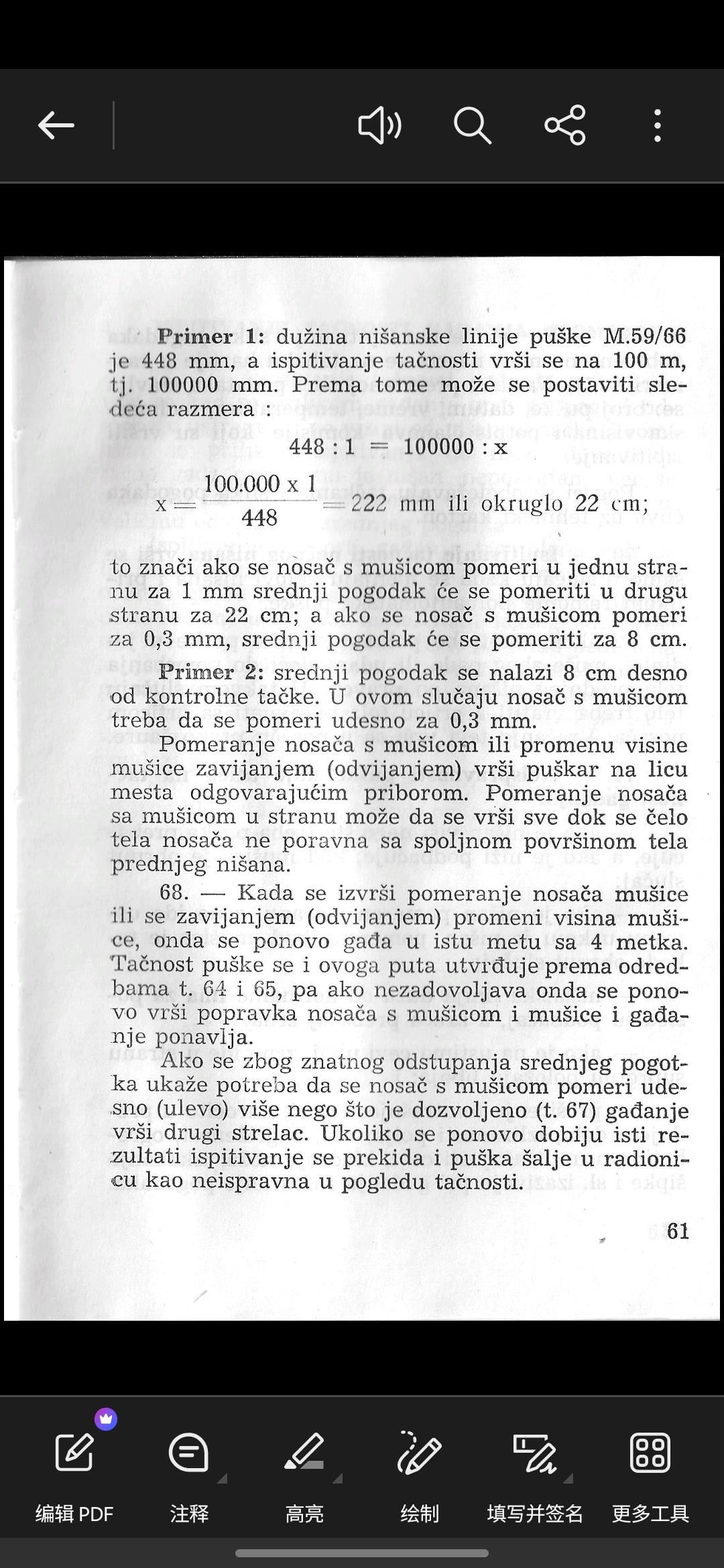

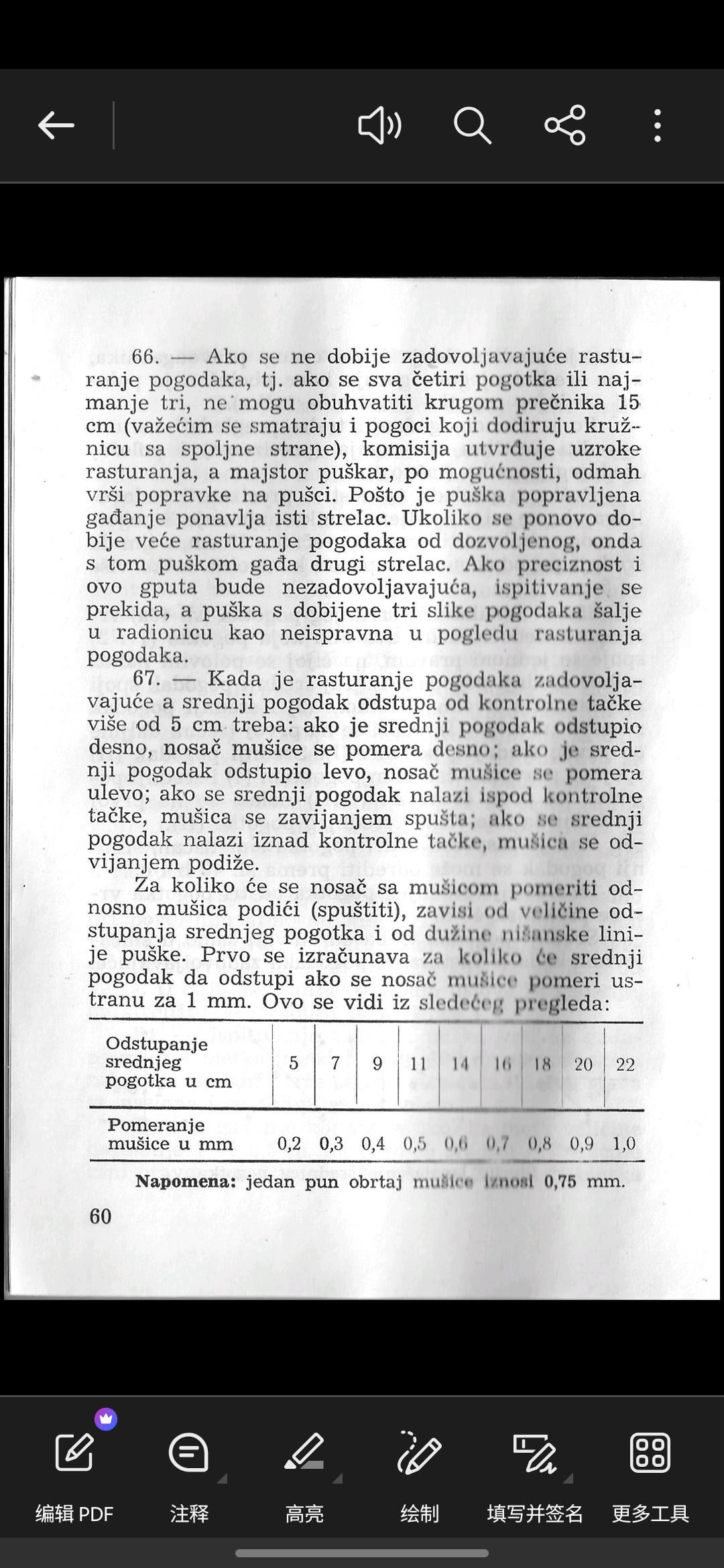

The elevation adjustment ratio is 1 turn = 16.5cm at 100m, while windage is 1mm = 22cm at 100m.

Hope this helps, comrades.

[u/AutoModerator]

Hi! It looks like your post mentions buying, selling, or linking to retailers/private marketplaces.

Just a reminder to everyone that no offers to buy, purchase, sell are allowed on this sub due to Reddit's community restrictions on firearms transactions. Limit discussion to the items themselves and do not post any direct links to sales or promotions. Referring to legal vendors is allowed as long as links to do not go to retail listings for items. THIS INCLUDES GUN SAFETY EQUIPMENT AND GUN ACCESSORIES: Reddit Admins have banned users for this!

If your post doesn't violate these rules, no action is needed and you can safely disregard this comment.

I am a bot, and this action was performed automatically. Please contact the moderators of this subreddit if you have any questions or concerns.

[u/BrotherLefthand]

rifle shoot 3" right? I aim 3" left. Problem solved, comrade. Rifle is fine.

[u/Historical-Hat2629 → u/BrotherLefthand]

Tula/Jianshe/Zastava ballistics right there

[u/TheSaSQuatCh]

My dad learned this in school like 50 years ago… when I got my first SKS, we took it to the range and he went through this exact thing!

[u/ovjho]

Oh cool! I want to check that out and officially sight mine in!

(Official documentation for Soviet based rifle is obviously in Russian)

https://giphy.com/gifs/LycfkVG4L6x0Y

[u/skelecorn666 → u/ovjho]

Ivan didn't sight yours already?

I'm joking, but mine shot well enough out of the cosmo that I dare not fuck with it.

[u/Historical-Hat2629 → u/skelecorn666]

Ivan might have forgotten to sight in some of the factory refurbs. I've seen some force-matched Russian SKS carbines with bullet trajectories that simply don't make any sense out of the box.

Due to the rarity of 100m rifle lanes, a lot of them have to be sighted in by the new owners at 25m or 50m indoor ranges with the rear sight at I or 1, which works too but might not be as accurate when aiming with III. You probably need some Kentucky Elevation to figure out the POI.
